Concrete slab contractor in Port Orange: pads, floors and where the lines fall

A concrete slab is any flat, formed pour that carries weight. That covers the pad under a shed, a garage floor, a pad for an RV or boat, a workshop floor, and the base for a generator or air handler. In Port Orange each one hits its own size line, setback or drainage rule. Those rules shape the design before the concrete does.

We sort the work by what the slab holds up. This page is for sheds, detached garages, workshops and equipment pads. A slab under a house or addition is a footing job, so head to our foundation page. Barn, metal building and barndominium floors belong on the pole barn page. For a car pad plus the apron, try the driveway page.

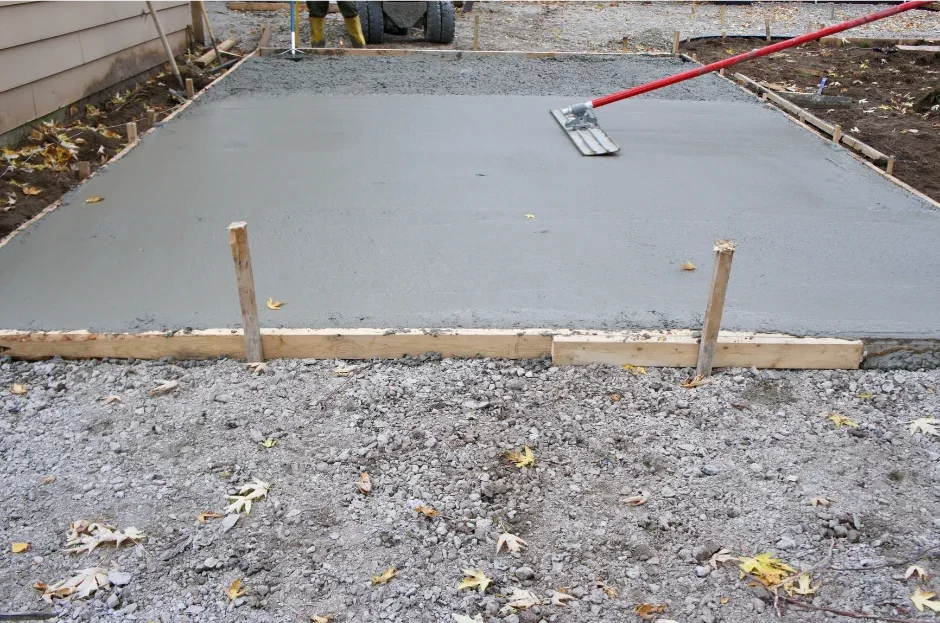

Shed pads: the 120 sq ft line in Port Orange

The city's Permitting Guide has a "Shed 120 Sq. Ft. or More" permit and asks for a survey, sealed drawings and anchor details. The anchor detail brings the slab layout into it, since the shed's tie-down points and the pad's edge have to match.

Setbacks grow with size under the special setback rules. A storage building up to 120 sq ft sits 5 feet from the property line. From 121 to 250 sq ft, it moves to 10 feet from the rear and side lines, or the house's side setback if that's less. From 251 sq ft, it follows the house's setbacks. A 10 x 12 pad is exactly 120, but a 12 x 12 is 144 and crosses the line.

Under Port Orange's HB 803 guidance, accessory structures count as structural work, so the under-$7,500 exemption doesn't apply, and it's void on any lot in a flood hazard area. In unincorporated Samsula, county Code Sec. 72-277(d) lets a shed of 480 sq ft or less on a single-family lot go up without a shed building permit, as long as it still meets the accessory and flood rules. If your size sits near one of these lines, we check it first at the site visit.

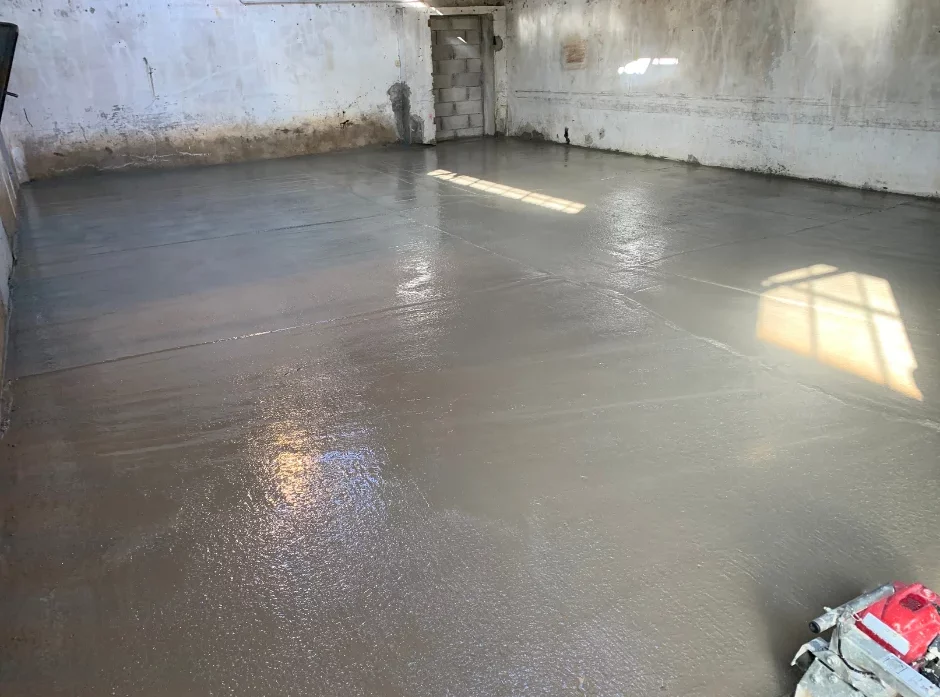

Garage and workshop slabs: slope, thickness and the footing edge

Under R309.1 of the Florida Building Code, a garage floor is approved noncombustible material, sloped to a drain or toward the main vehicle door. We build the pitch into the forms so water runs out of the bay and never sits by the door. R506.1 sets the slab itself at 3 1/2 inches minimum. We price on 4 inches, reinforced.

If a garage slab has a footing edge, the footing goes 12 inches below finished grade. R402.2 puts garage floors at 2,500, 3,000 or 3,500 psi depending on how severe the weathering exposure is, and your plans name the number. Put a workshop corner or a vehicle lift in a detached garage and the load goes up, so we thicken the slab where the lift or the bench sits.

Here's the math at our $7 to $12 per sq ft range. A 20 x 24 garage slab is 480 sq ft, so $3,360 to $5,760. A 24 x 24 is 576 sq ft, so $4,032 to $6,912. A 24 x 30 workshop slab is 720 sq ft, so $5,040 to $8,640.

RV, boat and equipment pads under Port Orange's front-yard rules

Any concrete slab contractor in Port Orange forming an RV pad starts with the city's paving rules. Set a trailer or motorhome on a new front-yard pad and the paving rules kick in. Land Development Code Ch. 12 Sec. 3(g) caps front-yard driveway and parking coverage at 40 percent, and "Both pervious and impervious surfaces shall be considered." That coverage also has to stay directly in front of the garage or in the side yard, and it can't widen toward the center of the front yard unless it's a circular driveway.

Code Sec. 70-36 allows front-yard parking only on approved driveways: concrete or paved material, contained loose material inside a rigid border, or concrete paver strips and similar semi-pervious material. Grass and dirt don't count. You'll have an easier time with a side-yard pad. If that pad ties into the driveway, a standard driveway's nearest edge has to stay at least 5 feet from a side property line on a local street.

Weight decides thickness. The Concrete Network, citing the Tennessee Concrete Association, says going from 4 to 5 inches adds about 20 percent to concrete cost for nearly 50 percent more load capacity, and a loaded RV or boat trailer earns that extra inch. A 12 x 35 pad is 420 sq ft, or $2,940 to $5,040. Setting a generator or HVAC unit? Send the equipment's installation sheet and we'll size the pad to its footprint.

What the slab sits on: sand, roots and standing water

A slab is thin. It's only as flat as the ground under it. Port Orange has poorly drained flatwoods sands, where NRCS expects a seasonal high water table, and fast-draining ridge sands. On the wet ground we grade so water leaves the pad and doesn't soak its edge. On the dry ground the job is compaction, since loose sand settles under a wheel load.

Under R506.2.1, fill under a slab maxes out at 24 inches of clean sand or gravel, or 8 inches of earth, unless the building official approves more. It has to be free of vegetation and foreign material and compacted for uniform support. Big oaks grow here too. UF/IFAS warns that live oak roots can lift and crack nearby surfaces, so at the site visit we mark the root zone and see if the pad should shift a few feet.

Pads that tie to a house add one more step. Termite protection under R318.1.6 reaches 1 foot out from the sidewalls, and soil disturbed after treatment must be retreated. Sunshine 811 gets a call before we dig. You tell us about private lines such as irrigation, which the member utilities don't mark.

Joints, shrinkage cracks and the first week

Concrete shrinks as it cures. Give the cracks a planned place to go. R506.2.4 calls for contraction joints per ACI 332, unless fibers or 6x6 welded wire keep cracks in check. IRMCA's homeowner guide sets joints no more than 10 feet apart, cut at least a quarter of the slab depth. On a 24 x 24 garage, that works out to a grid of 3 by 3 panels, about 8 feet each.

Cracks that show up in the first day or two point to plastic shrinkage. NRMCA explains that they form when surface moisture evaporates faster than bleed water rises, and that wind over 5 mph, low humidity and high temperatures raise the risk. Synthetic fibers at 1 to 2 pounds per cubic yard cut down on them but carry no structural load. NRMCA also says to dampen the subgrade on hot, dry days and keep water off the surface during finishing.

Curing begins right after finishing and runs 3 to 7 days. Keep cars off for at least a week. For sealer, IRMCA suggests waiting about 30 days after placement.

Measurements and photos to send for a slab estimate

• Length, width and what will sit on the slab: a shed, car, RV, boat, lift or equipment
• A photo of the spot, plus one of the nearest oak, fence or neighbor's line
• The shed or building plan, including its anchor or tie-down layout
• Your survey, if you have it, so we can check setbacks and the front-yard 40 percent cap
• Which way water runs after a hard rain, and where irrigation or septic lines sit

Send those over and we'll price it. We're concrete slab contractors in Port Orange, and we pour what we quote. If the job needs a permit, we pull it. The county permit guide shows who handles what, and the cost guide shows how we build our per-sq-ft ranges.
